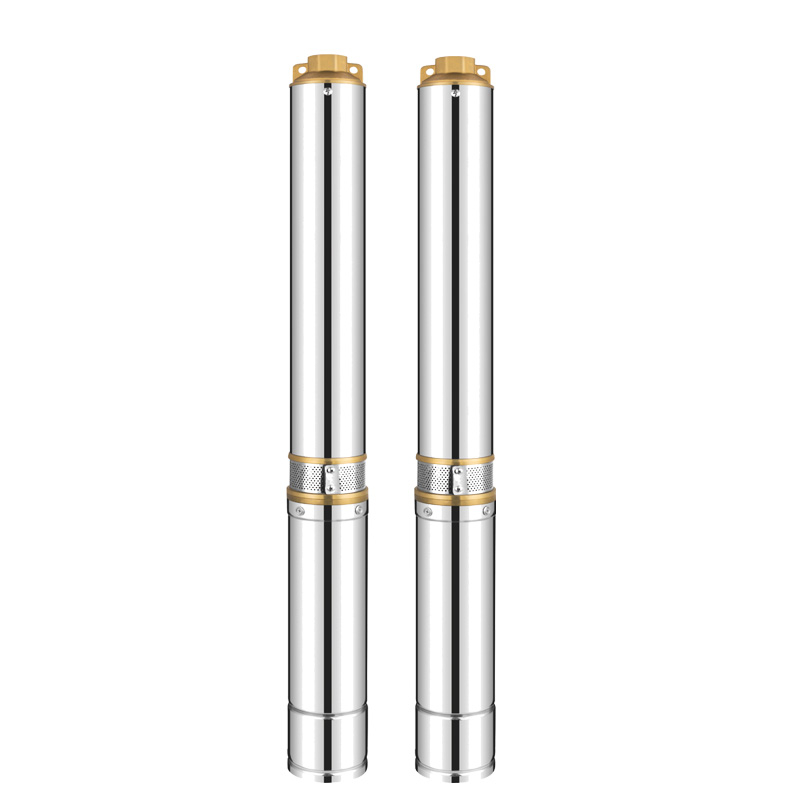

Name: 3SD High Head Vertical Submersiible Deep Well Water Pump
Brand: KATREENI
Rating: 5.0 (58 reviews)

Product Description

Applications

● For water supply from borehole deep wells.

● For domestic use, for civil and household applications.

● For garden use and irrigation.

Operating conditions

● Maximum fluid temperature up to +35^oC

● Maximum and content: 0.25%

● Maximum immersion: 80m.

● Maximum well diameter: 2.5", 3", 3.5",4"

Options on request

● Other voltages or frequency 60Hz

● Special mechanical seal and bearing brand

● Single phase motor with buit-in capacitor

● Brass or stainless steel outlet and connection.

● Special automatic digital control box and cable length

Motor and Pump

● Single-phase: 220V-240V/50Hz Three-phase:380V-415V/50Hz

● Equip with start control box and thermal protectors.

● Pumps are designed by casing stressed

● According to NEMA dimension standard.

● Curve tolerance according to ISO 9906

Component Material

Components	Material
Pump external casing	AISI201 SS
Outlet	Cast-Cu ASTM C8500 AISI 304 SS
Connection	Cast-Cu ASTM C8500 AISI 304 SS
Diffuser	Plastic.PC
Impeller	Plastic.POM
Pump Shaft	2Cr13 AISI304SS
Shaft coupling	2Cr13 AISI304SS
Wear ring	AISI304SS & Ceramic
Moter External Casing	AISI 201 SS AISI304SS
Top chock	Cast-Iron ASTM No.30 Cast-Cu ASTM C85500
Bottom support	AISI 304 SS
Mechanical seal	Graphite-Ceramic/TC Graphite-Silicon carbide
Motor Shaft	AISI 303 SS-ASTM 1045/5140
Bearing	C&U Others
Seal lubricant oil	White Oil for food machinery and pharmaceutic use.

Component Pictures

Product Parameters

Performance Data

MODEL	POWER		DELIVERY n ≈2850 r/min
50HZ	KW	HP	Q m³/h l/min	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
50HZ	KW	HP	Q m³/h l/min	0	5	10	15	20	25	30	35	40	45
3SD2-08	0.18	0.25	H(m)/ outlet(inch) 1''	35	34	34	33	32	29	26	22	17	11
3SD2-10	0.25	0.33		43	42	42	41	39	35	31	26	20	13
3SD2-14	0.37	0.5		60	59	59	56	53	49	43	36	27	17
3SD2-20	0.55	0.75		85	84	84	82	78	71	62	52	38	24
3SD2-27	0.75	1		115	113	111	108	102	93	83	68	52	33
3SD2-32	0.92	1.25		137	136	135	132	125	115	102	86	67	41
3SD2-37	1.1	1.5		156	154	151	146	139	128	113	93	70	43
3SD2-46	1.5	2		197	196	194	190	180	165	147	124	98	63

MODEL	POWER		DELIVERY n ≈2850 r/min
50HZ	KW	HP	Q m³/h l/min	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.0	3.3	3.6
50HZ	KW	HP	Q m³/h l/min	0	5	10	15	20	25	30	35	40	45	50	55	60
3SD2.5-08	0.25	0.33	H(m)/ outlet(inch) 1 ¹/4''	32	32	31	30	30	29	27	26	24	21	18	13	8
3SD2.5-11	0.37	0.5		44	43	43	42	41	39	37	35	32	29	24	18	11
3SD2.5-16	0.55	0.75		64	63	62	61	59	57	54	51	47	42	35	27	16
3SD2.5-21	0.75	1		84	83	82	80	78	75	72	68	62	56	46	35	21
3SD2.5-26	0.92	1.25		104	103	101	99	96	93	89	84	77	69	57	44	26
3SD2.5-31	1.1	1.5		124	122	121	118	115	111	106	100	91	82	68	52	31
3SD2.5-37	1.5	2		148	146	144	141	137	132	126	119	109	98	81	62	37

MODEL	POWER		DELIVERY n ≈2850 r/min
50HZ	KW	HP	Q m³/h l/min	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4
50HZ	KW	HP	Q m³/h l/min	0	10	20	30	40	50	60	70	80	90
3SD3.5-06	0.25	0.33	H(m)/ outlet(inch) 1 ¹/4''	23	23	23	22	21	20	17	14	10	5
3SD3.5-09	0.37	0.5		35	34	34	33	32	29	26	21	15	8
3SD3.5-12	0.55	0.75		46	46	45	45	42	39	34	28	20	11
3SD3.5-16	0.75	1		62	61	61	59	57	52	46	37	26	14
3SD3.5-20	0.92	1.25		77	76	76	74	71	65	57	46	33	18
3SD3.5-24	1.1	1.5		93	92	91	89	85	78	69	56	39	21
3SD3.5-28	1.5	2		108	107	106	104	99	91	80	65	46	25

MODEL	POWER		DELIVERY n ≈2850 r/min
50HZ	KW	HP	Q m³/h l/min	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0
50HZ	KW	HP	Q m³/h l/min	0	10	20	30	40	50	60	70	80	90	100
3SD4-05	0.25	0.33	H(m)/ outlet(inch) 1''	18	18	18	17	17	16	15	13	11	9	6
3SD4-07	0.37	0.5		26	25	25	24	23	22	20	18	16	12	9
3SD4-10	0.55	0.75		37	36	35	34	33	31	29	26	22	17	12
3SD4-13	0.75	1		48	47	46	45	43	41	38	34	29	23	16
3SD4-16	0.92	1.25		59	58	56	55	53	50	47	42	35	28	19
3SD4-19	1.1	1.5		70	69	67	65	63	59	55	50	42	33	23
3SD4-23	1.5	2		85	83	81	79	76	72	67	60	51	40	28

Performance Curve

Production Corner

Optional package

包装图

Transport Line

Why Choose Us

工厂图

KATREENI has been operating in the water pump industry for years.

It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.

We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.

We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.

Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.

Certificates

Workshop Corner

Exhibition

展会2

FAQ

1. Q: What is your warranty?

A: 12-18 months' warrantv, depending on product and market

2. Q: What is your MOQ?
A: Sample order is acceptable.

3.Q: What's your payment terms?
A: T/T, L/C, D/P...

4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.

5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.

6.Q:Can you accept customized products?
A: Yes, we accept special requirement.

7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
