WQDS Series Submersible Sewage  water Pump(with cutter)

Applications

For drainage slurry, waste water, containing fibre, waste, sand etc.

For irrigation of agricluture, architecture, mine, environment protection and industry

For sewage treatment plant, rural biogas land


Operating conditions

Maximum operating depth: 0.5~5m

Maximum medium temperature: +40ºC

Liquid pH value: 4~10

Max. Liquid density: 1.2*10³kg/m³


Specifications & Features

Insulation Class: B

Protection Class: IP68

Winding: Copper wire

Thermal protector: Built in or without

Shaft: AISI304 welded / 45# steel electroplated

Impeller: Double channel cast iron impeller

Mechanical seal:  Double-side structure Carbon/Ceramic/Stainless steel

Standard: With 8m cable & float switch

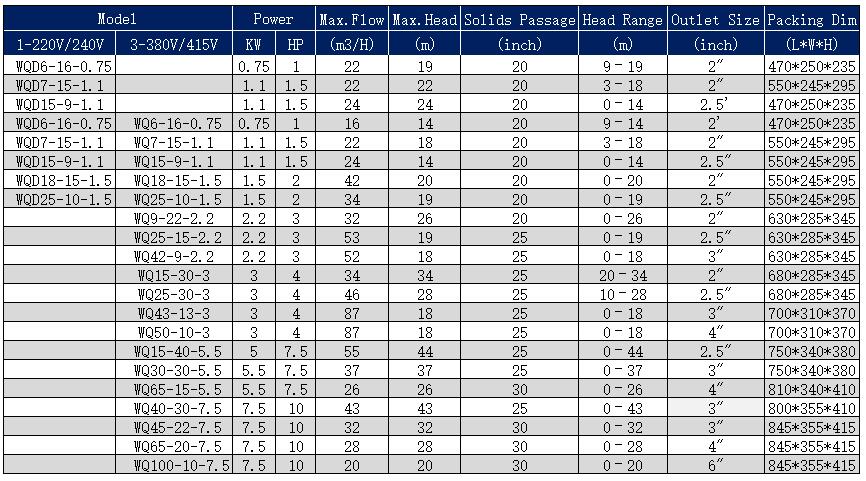

PERFORMANCE  DATA

WQD参数

WQD参数
