Applcations

Water supply

Sprinkler irrigaton

pressure boosting

Fire-fighting

Operating  conditions

Minimum well diameter: 3"

Maximum fluid temperature up to: +35 ºC

Maximum sand content: 0.25%

Maximum immersion depth: 80m

Specifications

Rewindable motor or fully enclosed shielding motor

Single-phase: 220V-240V/50Hz

Three-phase: 380V-415V/50Hz

Dimension complied with NEMA standard

Curve tolerance accord with ISO9906

Options on request

Special material components

Start control box or automatic digital control box

Cable length

Other voltages or frequency 60Hz

Single phase motor with built-in capacitor

     CURVES

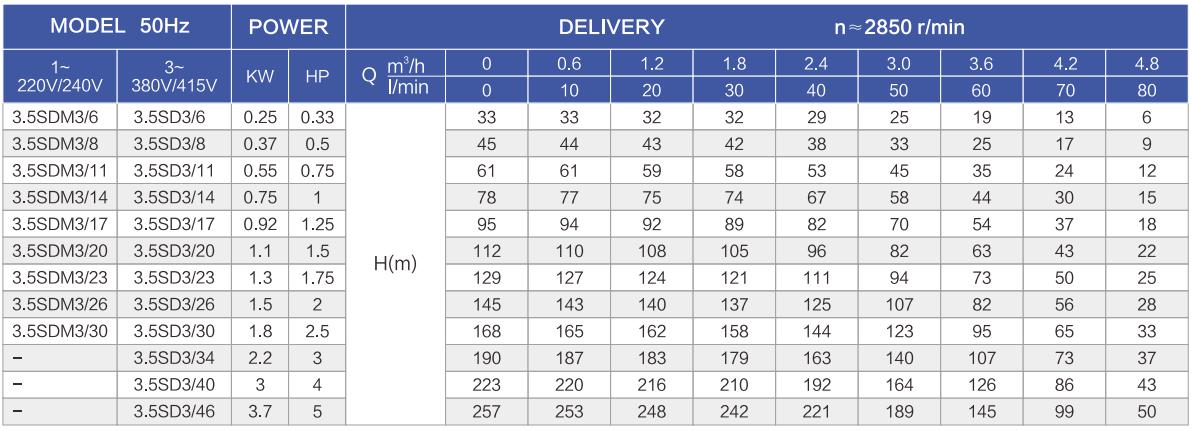

PERFORMANCE DATA
