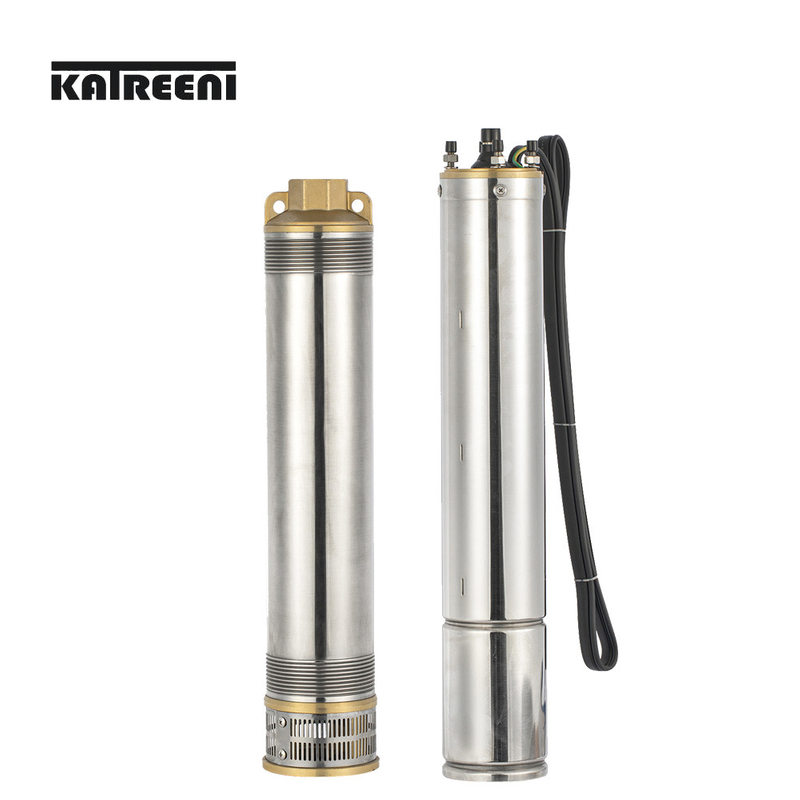

Name: Katreeni R95-A Submersible Deep Well Pump for Agricultural
Brand: KATREENI
Rating: 5.0 (99 reviews)

Product Descrption

Applications

● For water supply from borehole wells and reservoirs.

● For agricultural irrigation and fast and big water flow demand project. ● For water supply from more sand content water-environment.

Operating conditions

● Maximum fluid temperature up to +35 ^oC

● Maximum sand content: 100g/m3

● Maximum immersion: 100m.

● Maximum well diameter: 4" 5" 6"

Options on Request

● Other voltages or frequency 60Hz

● Special mechanical seal and bearing brand

● Single phase motor with buit-in capacitor

● Brass or stainless steel outlet and connection.

● Special automatic digital control box and cable length

Motor and Pump

● Single-phase: 220V-240V/50Hz Three-phase: 380V-415V/50Hz

● Power range: 0.37kW~9.2kW (4") 2.2kw~15kW(5") 3kw~22kw(6")

● Maximum starts per hour: 30 at regular intervals

● Equip with start control box and thermal protector.

● Pumps are designed by casing stressed

● According to NEMA dimension standard.

● Curve tolerance according to ISO 9906

Components Materials

Components	Material
Pump external casing	AISI 201 SS AISI 304 SS
Outlet	Cast-Cu ASTM C85500 AISI 304 SS
Connection	Cast-Cu ASTM C85500 AISI 304 SS
Diffuser	Plastic.PC/PPO
Impeller	Plastic.POM/PPO
Pump shaft	1Cr13 AISI 304 SS
Shaft coupling	1Cr13 AISI 304 SS
Wear ring	AISI 304 SS&Ceramic
Motor external casing	AISI 304 SS
Top chock	Cast-Cu ASTM C85500 Cast-Iron ASTM No.30
Botton support	AISI 304 SS
Mechanical seal	Graphite-Ceramic/TC Graphite-Silicon carbide
Motor shaft	AISI 303 SS-ASTM 1045/5140
Bearing	C&U Others
Seal lubricant oil	Oil for food machinery and pharmaceutic use

Componet Picture

Product Parameters

Performance Data

Model	Motor Power		DELIVERY n ≈2850 r/min
			Q m³/h l/min	0	1	1.5	1.8	2	2.5	3	3.5
			Q m³/h l/min	0	17	25	30	33	42	50	58
50Hz	HP	KW		Total head in meters
R95-A-06	0.5	0.37	H(m) outlet 1¹/₄''	50	45	38	36	34	30	24	12
R95-A-08	0.75	0.55		62	60	58	56	50	45	40	30
R95-A-12	1	0.75		95	91	89	83	80	65	56	42
R95-A-16	1.5	1.1		132	118	116	113	109	85	75	55
R95-A-20	2	1.5		170	155	146	140	137	120	102	78
R95-A-30	3	2.2		240	225	215	207	200	175	145	107
R95-A-40	4	3		313	292	282	266	250	220	180	135
R95-A-50	5.5	4		375	360	340	321	310	276	230	170
R95-A-60	7.5	5.5		468	450	420	390	372	330	300	234
R95-A-65	7.5	5.5		507	488	455	423	403	358	325	254

Performance Curve

R95 A

Optional packaging

Packaging & Shipping

Why Choose Us

工厂图

KATREENI has been operating in the water pump industry for years.

It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.

We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.

We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.

Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.

Certificate

Workshop Corner

车间2

Exhibition

展会2

FAQ

1. Q: What is your warranty?

A: 12-18 months' warrantv, depending on product and market

2. Q: What is your MOQ?
A: Sample order is acceptable.

3.Q: What's your payment terms?
A: T/T, L/C, D/P...

4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.

5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.

6.Q:Can you accept customized products?
A: Yes, we accept special requirement.

7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
