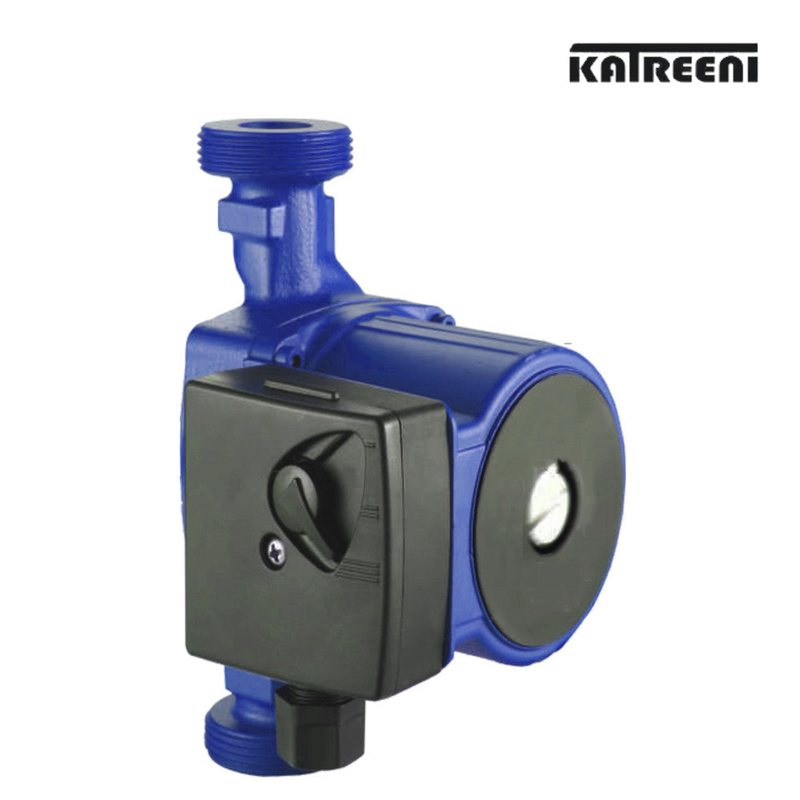

Mini Manual Hot water pressure automatic booster circulation pump for shower

Power
  • 127V/220V,50Hz/60Hz
Motor
  • Insulation class:H
  • Protection grade:lp44
Availability:
Quantity:
  • PBG25-6-180

  • KATREENI

  • 8413701090

Product Introduction

PBG 2_副本

Applications

Floor heating system

Solar heating system

Industrial circulating system

Domestic hot water circulation system


Operating Conditions

Liquid temperature up to +110oC

Ambient temperature to +40oC

Max.Working pressure 10 bar





Component Materials

Component Material
Pump body Cast iron
Motor housing Aluminum
Impeller PP
Motor shaft Ceramic
Bearing Ceramic


Component Picture

剖析图


Performance Data

Model Power
(W)
Voltage Max.
Flow
(m3/h)
Max.
Head
(m)
Inlet/Outlet
(Inch)
Port to Port
(mm)
PBG15-4-130 72/53/38 220V/50HZ 1.8/1.4/1 4.5/4/3 G3/4''to G1/2'' 130
PBG20-4-130 72/53/38 220V/50HZ 2/1.5/1 4.5/4/3 G1'' to G3/4'' 130
PBG25-4-130 72/53/38 220V/50HZ 2.5/2/1.5 4.5/4/3 G11/2'' to G1'' 130
PBG25-4-180 72/53/38 220V/50HZ 3/2/1.5 4.5/4/3 G11/2'' to G1 180
PBG32-4-130 72/53/38 220V/50HZ 3/2/1.5 4.5/4/3 G2'' to G1 1/4'' 130
PBG32-4-180 72/53/38 220V/50HZ 3.5/2.5/1.6 4.5/4/3 G2'' to G1 1/4'' 180
PBG15-6-130 93/67/46 220V/50HZ 2/1.5/1 6/5/3 G3/4'' to G1/2'' 130
PBG20-6-130 93/67/46 220V/50HZ 2.5/2/1.5 6/5/3 G1'' to G1 3/4'' 130
PBG25-6-130 93/67/46 220V/50HZ 3.3/2.3/1.6 6/5/3 G1 1/2'' to G1'' 130
PBG25-6-180 93/67/46 220V/50HZ 3.5/2.5/1.6 6/5/3 G11/2'' to G1'' 180
PBG32-6-130 93/67/46 220V/50HZ 3.5/2.5/1.6 6/5/3 G2'' to G1 1/4'' 130
PBG32-6-180 93/67/46 220V/50HZ 4.3/3/2 6/5/3 G2'' to G1 1/4'' 180
PBG25-8-180 165/115/75 220V/50HZ 5.4/3.6/2 8/7/5 G11/2'' to G1'' 180
PBG32-8-180 165/115/75 220V/50HZ 5.4/3.6/2 8/7/5 G2'' to G1 1/4'' 180
PBG25-8-180 245/200/135 220V/50HZ 8/5/3 8/6/4 G11/2'' to G1'' 180
PBG32-8-180 245/200/135 220V/50HZ 10/6/3.5 8/6/4 G2'' to G1 1/4'' 180
PBG20-12-180 245/220/145 220V/50HZ 3.1/1.9/1.3 12/11/7 G1'' to G3/4'' 180
PBG25-12-180 245/220/145 220V/50HZ 3.7/2.2/1.3 12/11/7 G11/2'' to G1'' 180
PBG25-15-180 270/210/150 220V/50HZ 4.1/2.8/1.7 14/13/10 G11/2'' to G1'' 180


Performance Curve

PBG15-6-130
PBG20-12-180


Production Corner

PBG production



Why Choose Us

工厂图

KATREENI has been operating in the water pump industry for years.

It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.

We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.

We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.

Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.


Certificate

证书1
证书2
证书3


Workshop Corner

车间

Exhibition

展会


展会2

FAQ

1. Q: What is your warranty?

A: 12-18 months' warrantv, depending on product and market

2. Q: What is your MOQ?
A: Sample order is acceptable.

3.Q: What's your payment terms?
A: T/T, L/C, D/P...

4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.

5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.

6.Q:Can you accept customized products?
A: Yes, we accept special requirement.

7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
