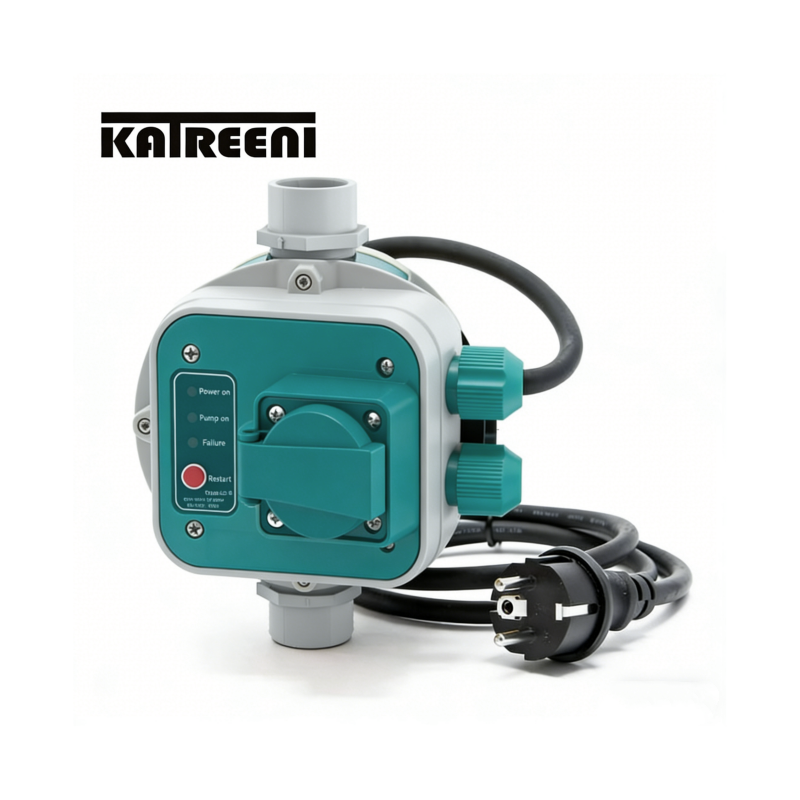

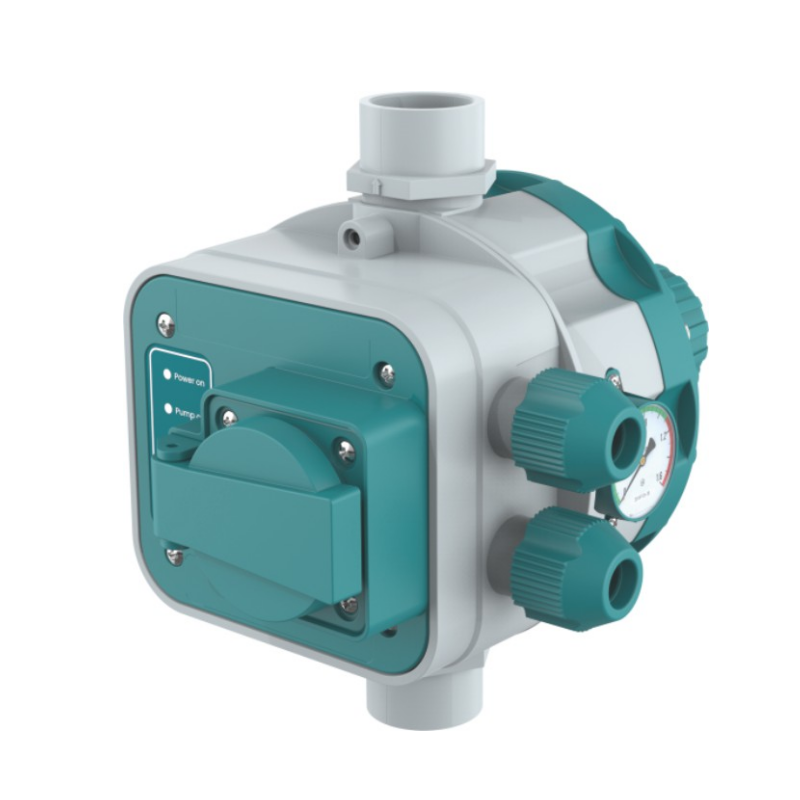

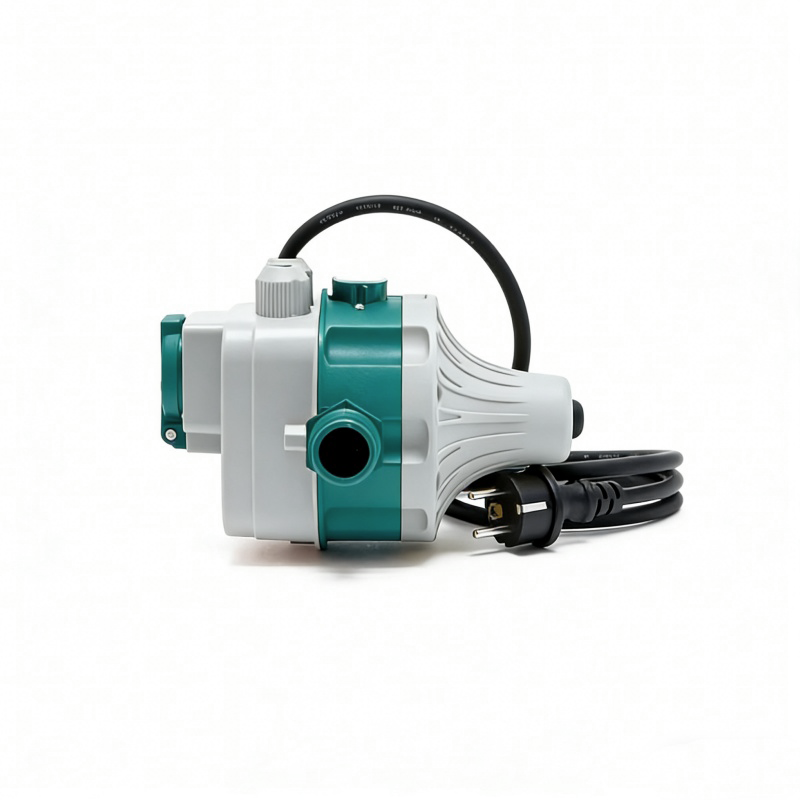

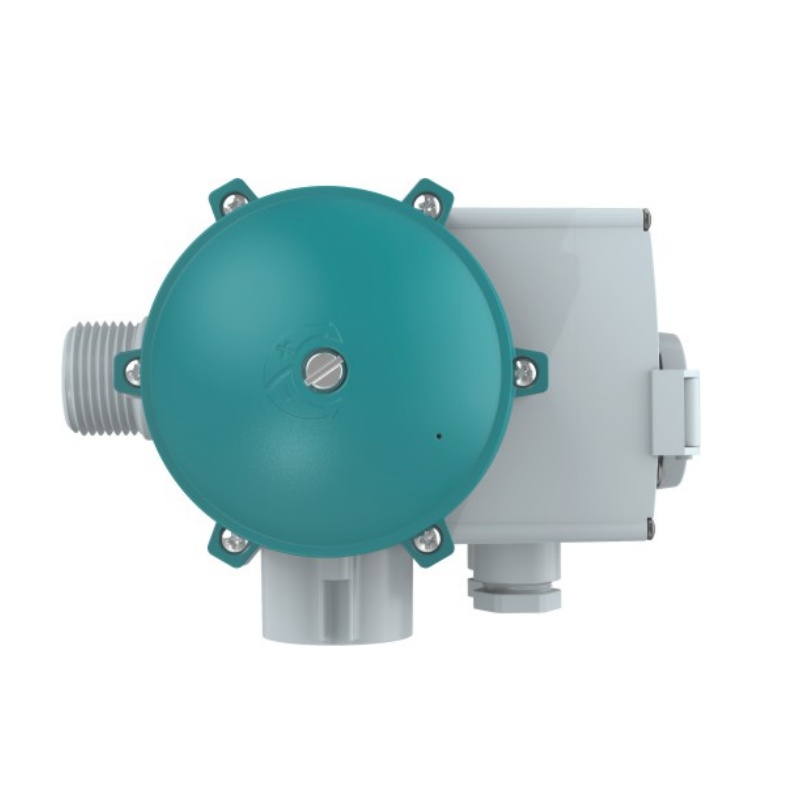

Easy Operation Electric Pump Control

Basic Information:
  • Rated Voltage:220V-240V/110V-120V
  • Frequency:50/60HZ
  • Max Current:10A
  • Max Power:1.1KW/1.5KW
  • Max.Working Pressure:10bar
  • Connection Thread: G1''
Availability:
Quantity:
  • EPC-8

  • OEM/ODM/KATREENI/DOLAY

  • 903281000

Product   Introduction

2 Applications  :Home use, domestic and civil use, Commercial, Industrial


Contact Type:Type b Contact

Detection Method:Correlation Type


Max Working Temperature:60 Centigrade Wiring


Wiring Requirement:Cable Diameter 7.5-9mm


Protection Rating:IP65

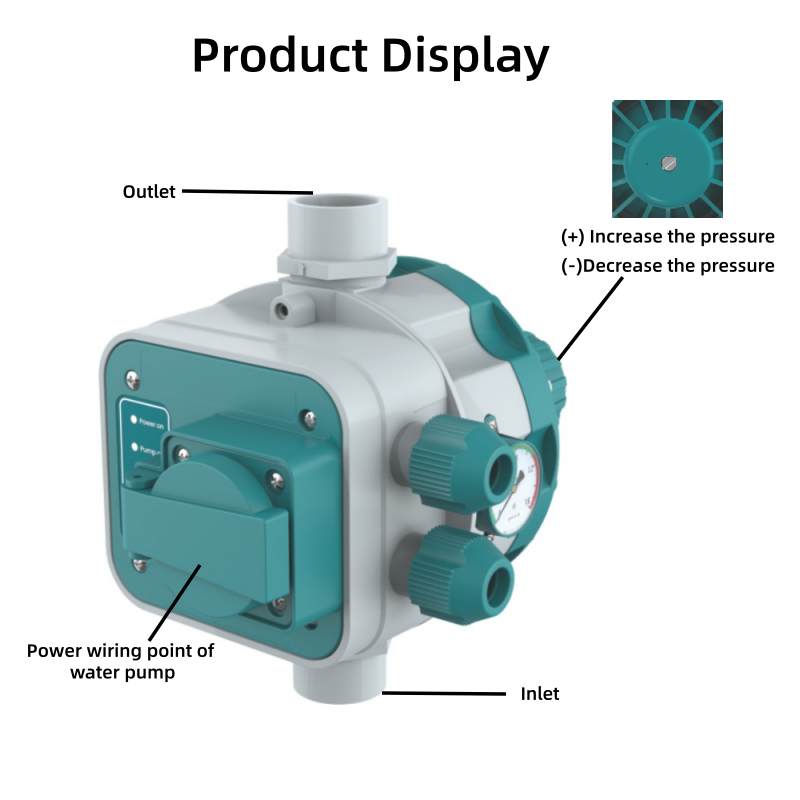

Detail Shows

86


Information for Product

Rated Voltage 110V/220V
Power Frequency 50/60HZ
Max Using Current 10A
Max Power 1.1KW/1.5KW

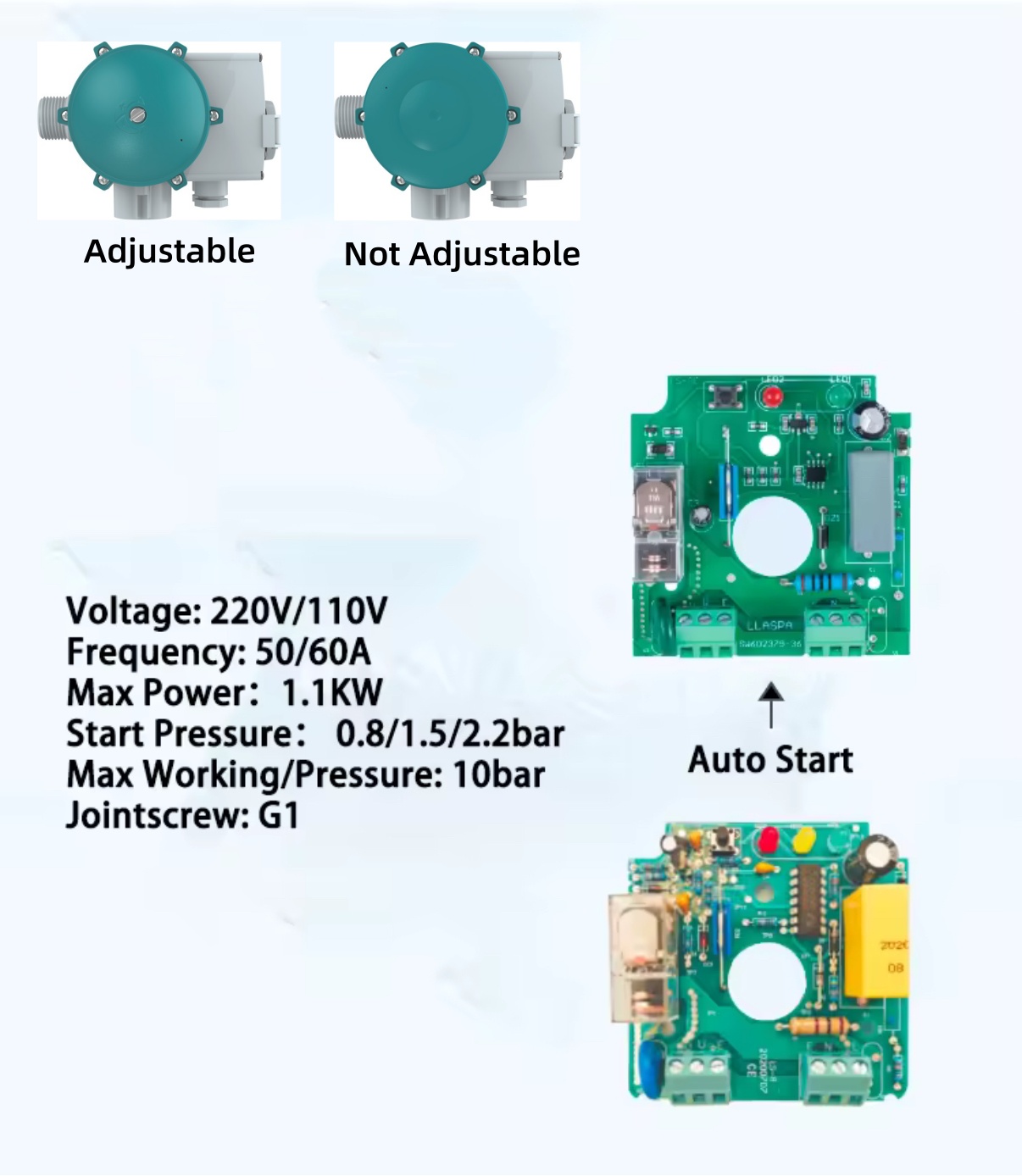

Adjustment Pressure 1.0bar-3.5bar
Not Adjustment Pressure 0.8/1.2/1.5/2.2bar
Max Working Pressure 10bar
Jointscrew G1''
Protection Rating IP65
Max Working Temperature 90℃
Packing Size 61*48*21cm
PCS/CTN 12PCS
N.W. 13.03kg
G.W. 15.58kg


Appaction

EPC-1 10

Production Corner

车间


Why Choose Us

工厂图


KATREENI has been operating in the water pump industry for years.

It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.

We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.


We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.

Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.


Certificates

证书1
证书2
证书3


Exhibition

展会
展会2


FAQ

1. Q: What is your warranty?

A: 12-18 months' warrantv, depending on product and market

2. Q: What is your MOQ?
A: Sample order is acceptable.

3.Q: What's your payment terms?
A: T/T, L/C, D/P...

4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.

5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.

6.Q:Can you accept customized products?
A: Yes, we accept special requirement.

7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
