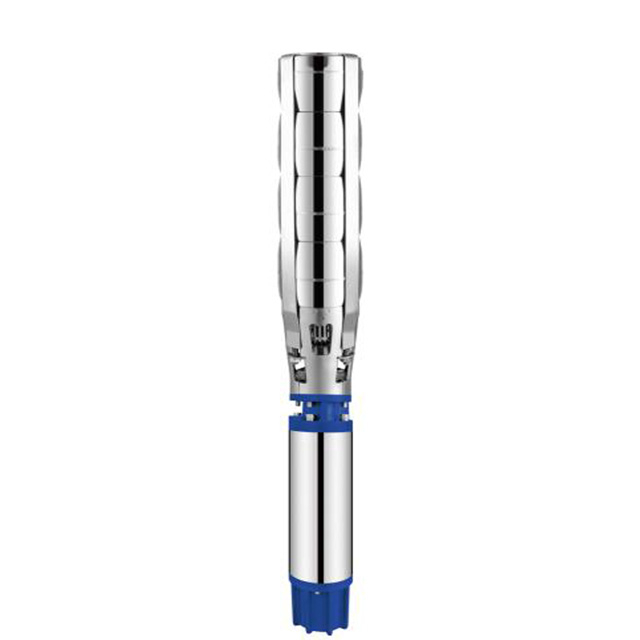

Name: Big Power Stainless Steel Submersible Borehole Pump for Industry
Brand: KATREENI
Rating: 5.0 (3 reviews)

Product Introduction

Applications

For water supply from borehole wells.
For industrial applications and domestic and civil use.
For irrigation in salt influenced water environment.

Operating conditions
Maximum fluid temperature up to +35 ^oC
Maximum sand content: 0.25%
Maximum immersion: 120m.
Maximum well diameter: 3", 4",5",6",8",10"

Options on request
Other voltages or frequency 60Hz
Special mechanical seal and bearing brand
Single phase motor with buit-in capacitor

Special automatic digital control box and cable length

Pump and Motor
AISI304 motor parts.
According to NEMA dimension standard.
Curve tolerance according to ISO 9906

Component Material

Components	Material
Pump external casing	AISI 304 SS
Outlet	AISI 304 SS
Connection	AISI 304 SS
Diffuser	AISI 304 SS
Impeller	AISI 304 SS
Pump shaft	1Cr13 AISI 304 SS
Shaft coupling	1Cr13 AISI 304 SS
Wear ring	AISI 304 SS&Ceramic
Motor external casing	AISI 201 SS AISI 304 SS
Top chock	Cast-Cu ASTM C85500 Cast-Iron ASTM No.30
Botton support	AISI 304 SS
Mechanical seal	Graphite-Ceramic/TC Graphite-Silicon carbide
Motor shaft	AISI 303 SS-ASTM 1045/5140
Bearing	C&U Others
Seal lubricant oil	Oil for food machinery and pharmaceutic use

Component Picture

Performance Data

MODEL	POWER		DELIVERY n≈2850 r/min
3~380V/415V	KW	HP	Q m³/h l/min	0	12	24	36	48	60	72	84	96
3~380V/415V	KW	HP	Q m³/h l/min	0	200	400	600	800	1000	1200	1400	1600
8SP77-2	7.5	10	H(m)/ outlet(inch) 5''	40	40	39	36	33	30	27	22	17
8SP77-3	11	15		60	60	58	54	49	44	40	33	25
8SP77-4	15	20		80	80	78	72	65	59	53	44	34
8SP77-5	18.5	25		101	100	97	90	82	74	66	55	45
8SP77-6	22	30		121	120	117	108	98	89	80	67	50
8SP77-7	26	35		141	140	136	126	114	104	93	78	59
8SP77-8	30	40		161	160	156	144	130	118	106	89	67
8SP77-9	30	40		181	180	175	162	147	133	119	100	76
8SP77-10	37	50		201	201	195	180	163	148	133	111	84
8SP77-11	37	50		221	221	214	198	179	163	146	122	92
8SP77-12	45	60		241	241	233	216	196	178	159	133	101
8SP77-13	55	75		261	261	253	234	212	192	172	144	109
8SP77-14	55	75		281	281	272	252	228	207	186	155	118
8SP77-15	55	75		302	301	292	270	245	222	199	167	126
8SP77-16	63	85		322	321	311	288	261	237	212	178	134
8SP77-17	63	85		342	341	331	306	277	252	225	189	143
8SP77-18	63	85		362	361	350	324	293	266	239	200	151
8SP77-19	75	100		382	381	370	342	310	281	252	211	160
8SP77-20	75	100		402	401	389	360	326	296	265	222	168

MODEL	POWER		DELIVERY n≈2850 r/min
3~380V/415V	KW	HP	Q m³/h l/min	0	12	24	36	48	60	72	84	96	108	120
3~380V/415V	KW	HP	Q m³/h l/min	0	200	400	600	800	1000	1200	1400	1600	1800	2000
8SP95-2A	7.5	10	H(m)/ outlet(inch) 5''	32	32	30	28	26	24	23	21	18	15	10
8SP95-2	9.2	12.5		43	42	40	38	35	32	30	28	25	20	14
8SP95-3A	11	15		53	53	50	47	44	40	38	35	31	25	17
8SP95-3	13	17		64	63	60	57	53	49	45	41	37	30	21
8SP95-4A	18.5	20		74	74	70	66	61	57	53	48	43	35	24
8SP95-4	22	25		85	84	81	76	70	65	60	55	49	40	28
8SP95-5	26	30		106	105	101	94	88	81	75	69	61	49	35
8SP95-6	30	35		128	126	121	113	105	97	90	83	74	59	42
8SP95-7	30	40		149	147	141	132	123	113	105	97	86	69	49
8SP95-8	37	50		170	168	161	151	140	130	120	111	98	79	56
8SP95-9	37	50		191	189	181	170	158	146	135	124	110	89	62
8SP95-10	45	60		213	210	201	189	175	162	150	138	123	99	69
8SP95-11	55	75		234	231	221	208	193	178	165	152	135	109	76
8SP95-12	55	75		255	252	242	227	210	194	180	166	147	119	83
8SP95-13	63	85		276	273	262	245	228	210	195	180	159	128	90
8SP95-14	63	85		298	294	282	264	245	227	210	193	172	138	97
8SP95-15	75	100		319	315	302	283	263	243	225	207	184	148	104
8SP95-16	75	100		340	336	322	302	280	259	240	221	196	158	111

Performance Curve

Production of this serie

Optional Package

Transport Line

Why Choose Us

KATREENI has been operating in the water pump industry for years.

It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.

We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.

We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.

Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.

Certificate

Workshop Corner

Exhibition

FAQ

1. Q: What is your warranty?

A: 12-18 months' warrantv, depending on product and market

2. Q: What is your MOQ?
A: Sample order is acceptable.

3.Q: What's your payment terms?
A: T/T, L/C, D/P...

4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.

5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.

6.Q:Can you accept customized products?
A: Yes, we accept special requirement.

7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
