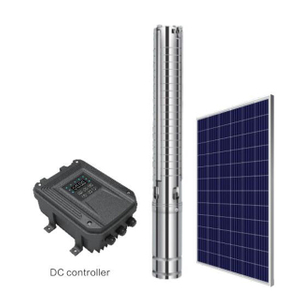

4inch DC Submersible Solar Water Pump Solar Energy Systems

Easy For Installation And Connection,
Mppt Function To Reach Best Performance In Any Moment
Smart Control And Automatic Protection
Saving Cost, Economic
Environmental Protection And Energy Saving
  • 4DCSP5.5-49-48-500


Product Introduction


1.Pumps can be plugged in and used without manual pressure setting.

2.Stepless Pressure Regulation-Water pump can adjust its starting pressure intelligently.
3.Intelligent Pressure Regulation-water Hydraulic Fluctuation Controller Intelligently Superposes Pipeline Pressure.
4.Installation is not limited by floor height 0-100m lift can be applied, equipped with self-priming pump, jet pump, centrifugal pump, deep well pump and other applications.
5.Water Absorption Delay Function-water Absorption will test the water source for 8 minutes.
6.Automatic monitoring of water shortage, if water shortage for 5minutesthe intelligent controller will stop the pump operation.
7.When the water pump is short of protection, the water pump will start automatically
8.High temperature resistance 120 degrees.
9.Lightning protection.
10.Pressure tank can eliminate the effect of water hammer and prolongle service life of pump motor.
11.Manual mode prevents frequent start-up caused pipeline leakage

Component Materials

Components Material
Pump external casing AISI 304 SS
Outlet AISI 304 SS
Connection AISI 304 SS
Diffuser AISI 304 SS
Impeller AISI 304 SS
Pump shaft ①1Cr13                                                   ②AISI 304 SS
Shaft coupling ①1Cr13                                                   ②AISI 304 SS
Wear ring AISI 304 SS&Ceramic
Motor external casing ①AISI 201 SS                                          ②AISI 304 SS
Top chock ①Cast-Cu ASTM C85500                        ②Cast-Iron ASTM No.30
Botton support AISI 304 SS
Mechanical seal ①Graphite-Ceramic/TC                          ②Graphite-Silicon carbide
Motor shaft ①AISI 303 SS-ASTM 1045/5140
Bearing ①C&U                                                    ②Others
Seal lubricant oil Oil for food machinery and pharmaceutic use

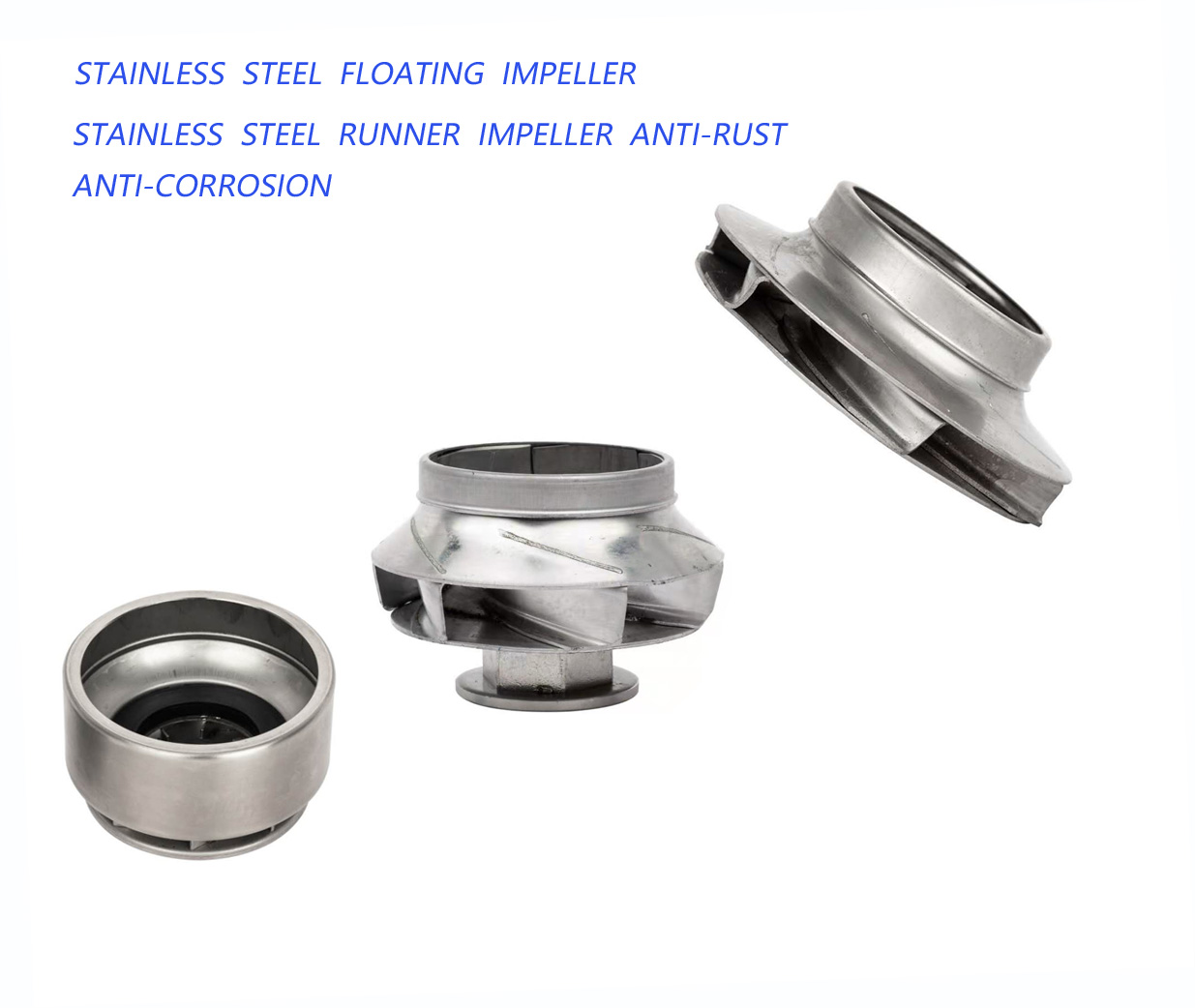

Component Pictures


Technical Data

ITEM Voltage
Best input Voltage
Open circuit voltage
Solar Panels Suggestion
Voltage(V) Power(W) Quantity(pcs)
4DCSP5.5-49-48-500 48 60-90V 500 5.5 49 1.25''-1'' <100V 36 330 2
4DCSP5.5-75-48-750 48 60-90V 750 5.5 75 1.25''-1'' <100V 36 250 4
4DCSP5.5-75-72-750 72 90-120V 750 5.5 75 1.25''-1'' <150V 36 330 3
4DCSP5.5-111-72-1100 72 90-120V 1100 5.5 111 1.25''-1'' <150V 36 300 6
4DCSP5.5-140-110-1100 110 110-150V 1100 5.5 140 1.25''-1'' <200V 36 300 6
4DCSP5.5-202-110-1300 110 110-150V 1300 5.5 202 1.25''-1'' <200V 36 300 6
4DCSP5.5-262-110-1500 110 110-150V 1500 5.5 262 1.25''-1'' <200V 36 300 8

Performance Table

ITEM Motor Power Capacity and head
l/min 0 17 25 33 42 50 58 67 75 83
m3/h 0 1 1.5 2 2.5 3 3.5 4 4.5 5
4DCSP5.5-49-48-500 Head
49 43 41 39 36 34 31 27 22 17
4DCSP5.5-75-48-750 75 66 61 58 48 41 35 30 27 19
4DCSP5.5-75-72-750 75 66 61 58 48 41 35 30 27 19
4DCSP5.5-111-72-1100 111 99 90 87 77 66 56 44 32 20
4DCSP5.5-140-110-1100 140 124 115 96 85 74 62 51 35 24
4DCSP5.5-202-110-1300 202 156 121 101 95 85 70 55 37 27
4DCSP5.5-262-110-1500 262 162 127 119 109 94 76 59 40 30

Performance Curve


Production Corner

SP 生产图

Optional package


Transport Line

Zhejiang-Dolay-Pump-Industry-Co-Ltd- (82)

Why Choose Us


KATREENI has been operating in the water pump industry for years.

It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.

We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.

We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.

Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.





Workshop Corner



1. Q: What is your warranty?

A: 12-18 months' warrantv, depending on product and market

2. Q: What is your MOQ?
A: Sample order is acceptable.

3.Q: What's your payment terms?
A: T/T, L/C, D/P...

4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.

5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.

6.Q:Can you accept customized products?
A: Yes, we accept special requirement.

7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
