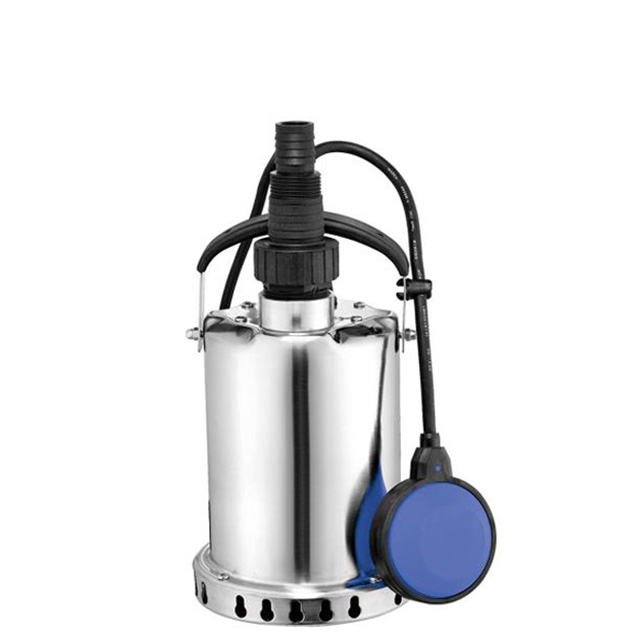

QDS Submersible Garden Water Pump (Clean water pump)
Operating conditions
Liquid temperature up to 35° C
Max.Ambient Temperature:40° C
Max.Immersed depth: 3m
Specifications
Insulation class: B
Protection class: IP68
Housing: AISI304 SS
Suction filter: Technopolymer /AISI304SS
Impeller:Noryl
Motor Shaft: ASIS304SS
Mechanical seal:Ceramic/Graphite
110V/127V/220V/380V440V,50Hz/60Hz available
Application
For household water supply
For farm land or garden sprinkler irrigation
For pressure boosting
Characteristics
Delivery body: AISI 304 Stainless steel
Motor sleeve and suction strainer.: AISI 304 SS
Motor shaft: AISI314 stainless steel
Mechanical seal : carbon/alumia.
Motor: designed for continuous duty. the motor protector is incorporated.
Supply cable: supplied standard with 1 meters of cable and plug.
External float: standard equipment.
Warranty: 1 year
