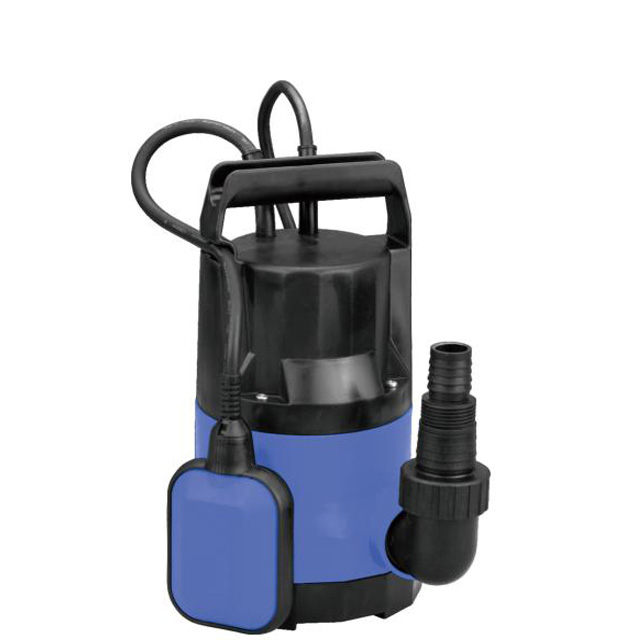

QDP series plastic clean water Submersible Garden Pump

This is a kind of small water pump,electric powerd, made from fiberglass reinforced technopolymer  material, stress resistance. the motor designed for continuous duty. used for household water supply , farm land or garden sprinkler irrigation, for pressure boosting  and car washing ,etc.

Availability:
Quantity:
  • QDP550-0.55 KW

  • KATREENI

  • 8413701090

QDP  Submersible Garden  Pump (Clean water pump)

Operating conditions

Liquid temperature up to 35° C

Max.Ambient Temperature:40° C

Max.Immersed depth: 3m


Specifications

Insulation class: B

Protection class: IP68

Housing: Plastic

Suction filter: Technopolymer /AISI304SS

Impeller: Noryl

Motor Shaft: ASIS304SS

Mechanical seal: Ceramic/Graphite

110V/127V/220V/380V440V,50Hz/60Hz available


Application

For household water supply

For farm land or garden sprinkler irrigation

For pressure boosting


Characteristics

Delivery body: AISI 304 Stainless steel

Motor sleeve and suction strainer.: AISI 304 SS

Motor shaft: AISI314 stainless steel

Mechanical seal : carbon/alumia.

Motor: designed for continuous duty. the motor protector is incorporated.

Supply cable: supplied standard with 1 meters of cable and plug.

External float: standard equipment.

Warranty: 1 year
