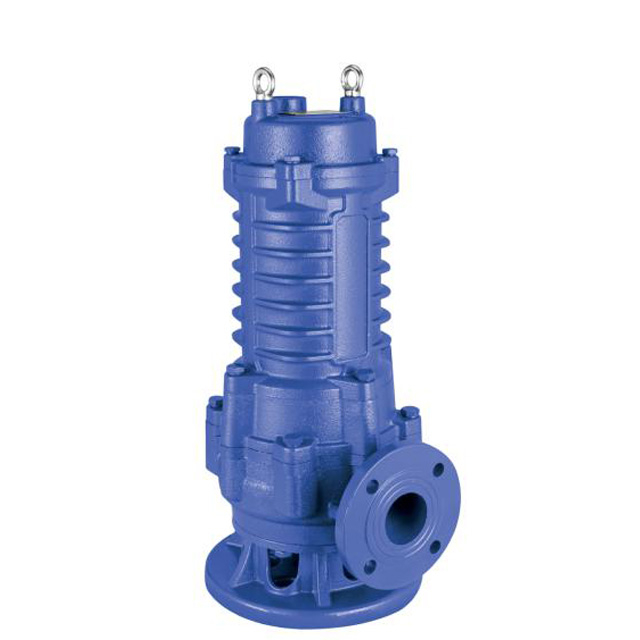

Large Power Submersible Dewatering Water Pump for Sewage Drainage

Availability:
Quantity:
  • WQ100-10-7.5

  • KATREENI

  • 8413701090

WQD Series  Sewage Submersible Pumps for dirty water (No cutter)

Application

Liquid temoreature up to 35° C
Max.AMBIENT Temperature: 40° C
Max.Immersed depth: 5m

Features
Liquid PH value:4-10
Liquid Kinematic :7x10 -7¬ 23x10 -6m2/s
Max.Liquid density:1.2x103kg/m3
insulation class:B/F
Protection class:IPx8


Materials  &  Specification
Housing: AISI304
Impeller: Iron
Shaft: AISI304
Mechanical seal: Ceramic/Graphite
Built-in protector& Double sealing structure
With float switch and 8m Cable
110V/127V/220V/380V440V,50Hz/60Hz available


PERFORMANCE   DATA

WQD参数
