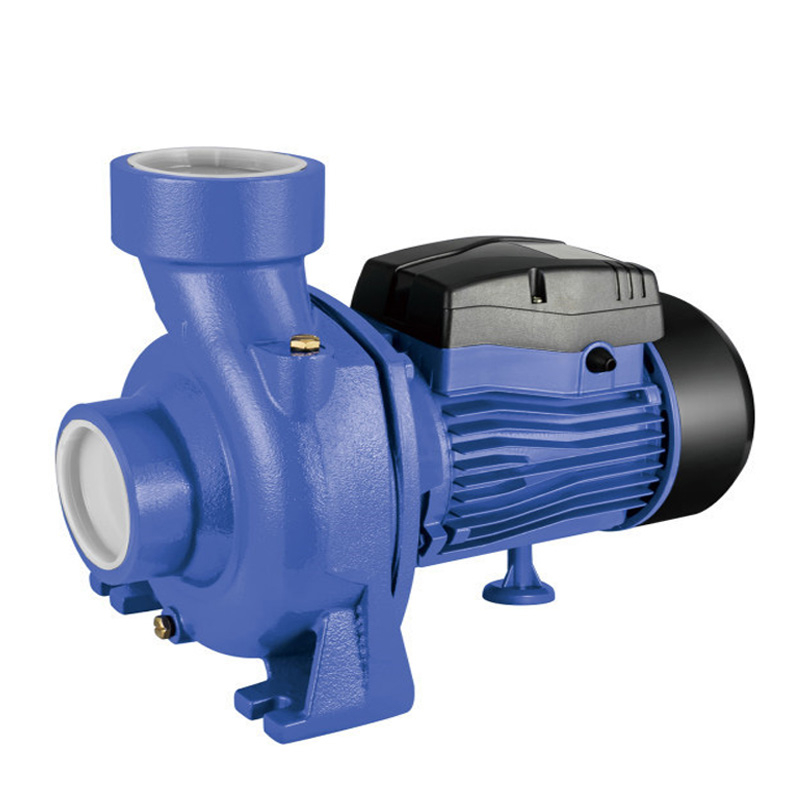

High Quality Self Priming Water Pump-MHF

  • Max suction : 8m
  • Max liquid temperature : +40oC
  • Max. working pressure : 6 bar
  • Liquid PH value : 6.5-8.5
  • The Max pressure of pump body  : 0.6MPa.
  • 110V/127V/220V/380V/440V,50Hz/60Hz available.
  • Insulation class:F
  • Protection class:IPX4
  • Built-in protector
Availability:
Quantity:
  • MHF5B

  • KATREENI

Product Introduct

MHF1

Application

Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.

Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting,

garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and

pressure boosting for cold and hot water, and supporting equipment.





Component Materials

Component Material
Pump body &Support Cast iron with Brass/AISI304 insert
Motor housing Aluminum
Impeller Brass /AISI304
Shaft AISI304
Mechanical seal Ceramic/Graphite
Cooling External ventilation


Performance Data

Model Power

Max.

Flow

(m3/h)

Max.

Head

(m)

Head

Range

(m)

Max.

Sucntion

(m)

Outlet

Size

(Inch)

Dinm.mm

(L*W*H)

Single-Phase Three-Phase KW HP
MHFm5B MHF5B 0.55 0.75 30 11 8-11 7 2'' 365*240*265
MHFm5A MHF5A 1.1 1.5 30 14 9-14 7 2'' 365*240*265
MHFm5BM MHF5BM 1.1 1.5 36 20.2 6-20.2 7 2'' 425*250*295
MHFm5AM MHF5AM 1.5 2 36 22.5 6-22.5 7 2'' 425*250*295
MHFm6C MHF6C 1.1 1.5 66 11.9 3-11.9 7 3'' 510*295*355
MHFm6B MHF6B 2 1.5 72 14.7 4-14.7 7 3'' 460*285*345
MHFm6A MHF6A 2.2 3 78 18.5 5-18.5 7 3'' 460*285*345


Performance Curve

MHF


Optional package

包装图


Transport Line

Zhejiang-Dolay-Pump-Industry-Co-Ltd- (83)

Why Choose Us

工厂图

KATREENI has been operating in the water pump industry for years.

It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.

We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.

We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.

Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.


Certificate

证书1
证书2
证书3


Exhibition

展会2
展会


Workshop Corner

车间2

FAQ

1. Q: What is your warranty?

A: 12-18 months' warrantv, depending on product and market

2. Q: What is your MOQ?
A: Sample order is acceptable.

3.Q: What's your payment terms?
A: T/T, L/C, D/P...

4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.

5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.

6.Q:Can you accept customized products?
A: Yes, we accept special requirement.

7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
