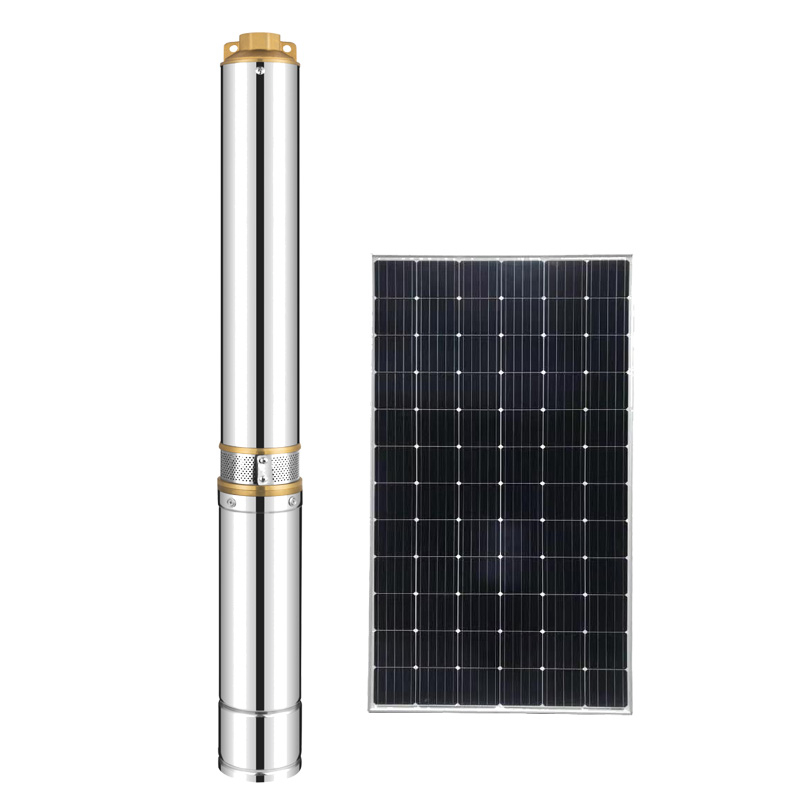

4QJZ
KATREENI
8413701090
Advantages
Easy For Installation And Connection, Directly To Solar Panels
Saving Cost, Economic And Cheap For General Family Or Farmers
Can Be Connected To Battery Directly
Material of Pump
Outlet: iron
Pump head : iron
Pump body: 201 stainless steell
Impeller: plastic
Motor: permanent magnet DC brushless motor
Cable :2 m
Oil cooling
MPPT function controller
Control Box
Waterproof level: IP65
Working environment temperature: -15-60oC
Max input current: 15A
MPPT function: the highest solar energy utilization
Automatic charging function: to ensure that the solar pump works normally while charging,
in the absence ofsunlight,the battery can
make the solar pump work continuously,
Digital display of power: voltage, current,speed
Frequency conversion function: can automatically operate according to the sunlight power
Automatically power on and off
Good waterproof and tightnes,double-layer sealing
Soft start: no inrush current,protection of pump motor
high/low pressure,over current, high temperature protection
Applications
Water supply
Sprinkler irrigaton
pressure boosting
Fire-fighting
Operating Conditions
Minimum well diameter: 3.5"
Maximum fluid temperature up to: +35 ºC
Maximum sand content: 0.25%
Maximum immersion depth: 80m
Specifications
Rewindable motor or fully enclosed shielding motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415V/50Hz
Dimension complied with NEMA standard
Curve tolerance accord with ISO9906
Options on Request
Special material components
Start control box or automatic digital control box
Cable length
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
