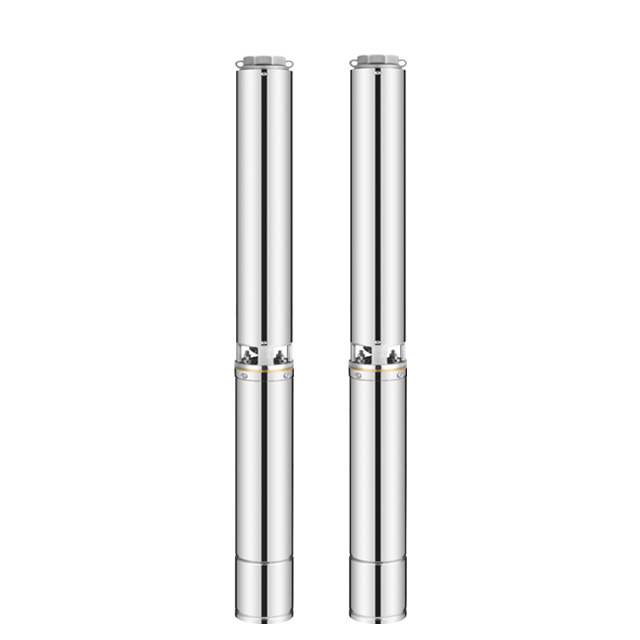

4ST4-7-550W
KATREENI
8413701090
Product Introduction
4ST series well submersible pump is a new energy-saving aquatic products, widely used for farmland irrigation, industrial and mining enterprises drainage and people in the plateau mountain water, and diving motor together into diving underwater work.
It has simple operation, small volume, light weight, convenient installation and maintenance, safe and reliable operation, high efficiency and energy saving.
Product Advantages
Submersible motor adopts high temperature resistant cream lead wire, stainless steel outlet strong wear resistance, built-in heat protector can product motor, sand resistant floating plastic POM impeller, wear resistant, pressure resistant graded impeller can absorb water for many times, high flow and high elevation. Using decompression oil capsules, the dive depth can reach 80 meters, designed for low voltage start, and the electric pump can be set at 160V-230V Normal work, stainless steel motor shaft, longer wear resistance life.
Oil immersionmotor, using foodgrade mechanical oil, fast dissipation
mechanical oil, good cooling effect, do not pollute the water source.
Operating Conditions
Minimum well diameter: 4"
Maximum fluid temperature up to: +-35 ºC
Maximum sand content: 0.25%
Maximum immersion depth: 80m
Motor and Pump
Rewindable motor or full obturated screen motor
1.direct start(1 cable) 2. star-delta start(2 cables)
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415V/50Hz
Dimension complied with NEMA standard
Curve tolerance accord with ISO2548
Maximum diameter :130mm &135mm
Options on Request
Special material components
Start control box or automatic digital control box
Cable length
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
4ST stainless steel submersible pump for well use
Deep well pumping for family villas
Landscape water, horticultural irrigation
Water supply for other occasions
Pressure boosting
Ground water supply
Industrial applications water treatment
Conditions of Use
1. Water temperature 0~40℃
2. The pH value of the water source is 6.5~8.0
3. The solid content in water (weight ratio) does not exceed 0.02%, and the diameter of large particles is not greater than 0.2mm
4. Power supply voltage: single-phase is 220V, three-phase is 380V, frequency is 50HZ, 60Hz,and the voltage fluctuation range is 0.9-1.1 times of the rated value
OUR QUALITY
High efficiency, energy saving, large power.
Made of stainless steel material, low consumption, anti oxidation.
Stainless steel net cover, prevent debris into the pump body.
Stainless steel pump body ,never rust, long service life.
Oil immersed 100% copper wire motor,quality assurance.
PERFORMANCE DATA
